Printed Circuit Board Series 2002
Series 2002
Two-Flute Scoring & Engraving
Two flute scoring tool available with specified scoring angle.
Diameter Range
0.1250"
3.00mm
STANDARD Flute Length (Inch)
| Part Number |
Tool Size |

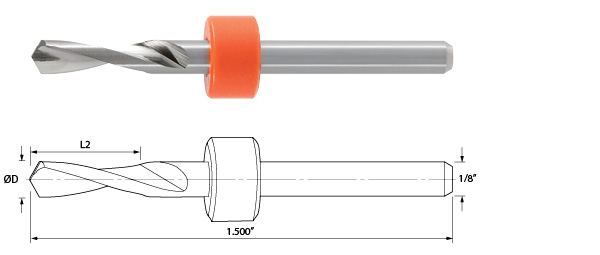

Dimensions (in) | Point Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 2002.1250.090 | 1/8" | 0.1250 | 0.551 | 90° |
| 2002.1250.120 | 1/8" | 0.1250 | 0.551 | 120° |
STANDARD Flute Length (Metric)
| Part Number |
Tool Size |
Dimensions (mm) | Point Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 2002.1181.030 | 3.00mm | 3.000 | 12.50 | 30° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
