KYOCERA Precision Tools

MD90 Series

High-Speed Aluminum Finishing

Download Brochure ORDER NOW

ALUMINUM'S FASTEST, FINEST, FINISH
with Kyocera's Ultra Fine Pitch Cutters

The MD90 delivers high-speed aluminum finishing with exceptional surface quality. Its fine-pitch design with PCD inserts reduces burrs, resists chatter, and supports aggressive feed rates. Whether you're machining EV housings, aerospace panels, or battery trays, the MD90 is built to keep your cycle times low and your finish standards high.

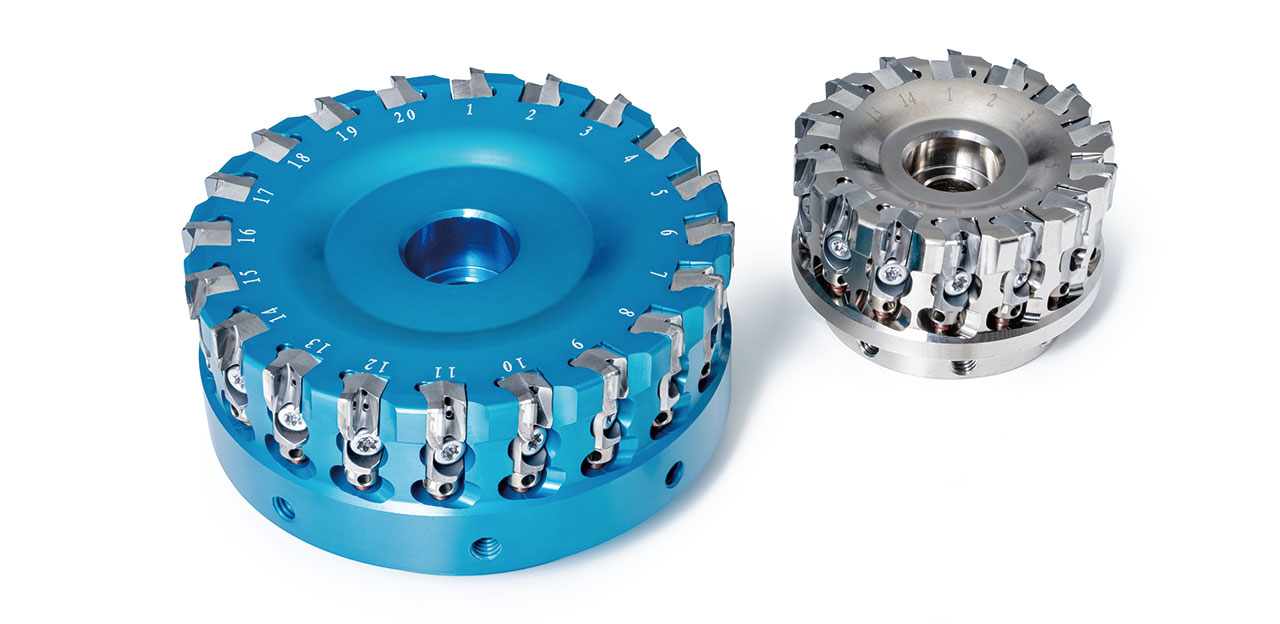

MD90 Display

Surface Quality + Stability

High-speed aluminum machining often means burrs, chatter, and inconsistent finishes. The MD90 counters this with a fine-pitch, low-vibration design and PCD inserts that suppress burrs and deliver mirror-like finishes up to 0.18 μmRa even in long-reach setups.


Productivity + Tool Life

From abrasive aluminum alloys to uncontrolled chip flow, aluminum machining presents constant challenges. The MD90’s PCD inserts resist wear at over 9,800 sfm, while optimized chip flow and high flute count support 30–40% faster feeds without sacrificing finish or stability.

PREMIUM FINISH WITH HIGHER FEEDS

Get more done in less time. Capable of 945 ipm feed rates, the ultra-fine pitch design boosts efficiency while delivering precision finishes and long-lasting tool life in aluminum machining.

Engineered for Speed and Precision

The unique design ensures efficient, high-quality results every time

High Efficiency - Designed with ultra-fine pitch specifications

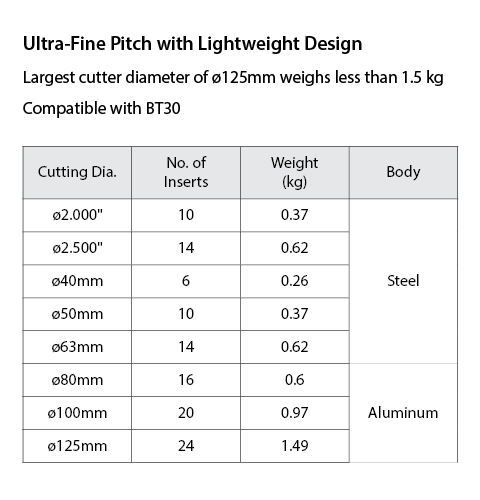

MD90 Cutting Edge Design Lightweight body designs



High Quality Finish - High-quality finishes, tight tolerances, and lasting performance

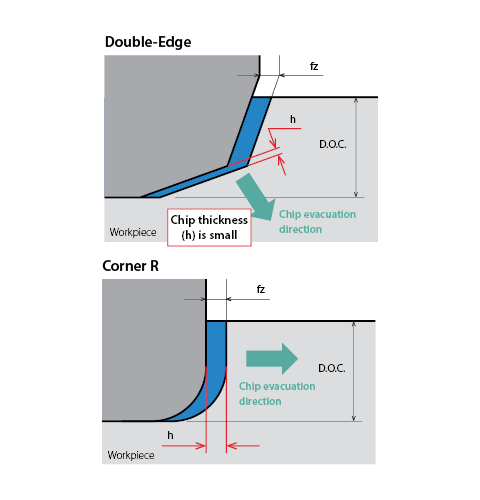

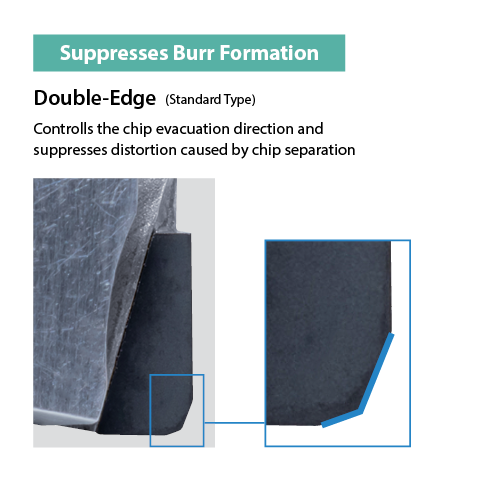

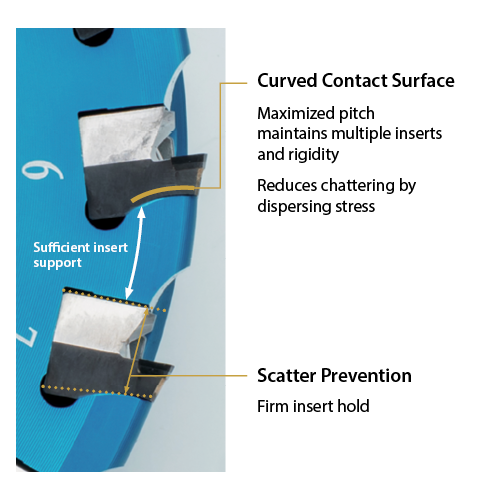

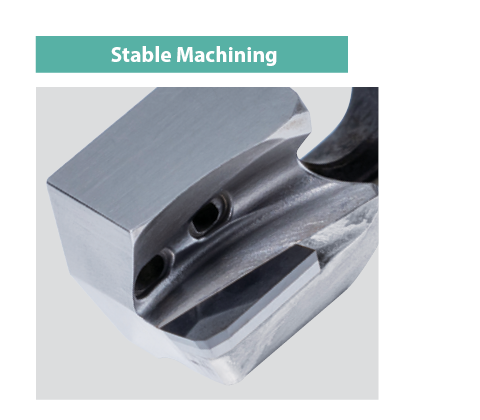

Supresses Burr Formation Edge diagram Stable machining insert design Double-coolant holes and streamlined chip pocket

Faster Cycle Time

With 16-24 flutes in fine pitch design, the MD90 achieves 30-40% higher feed rates compared to competitor cutters, without sacrificing finish

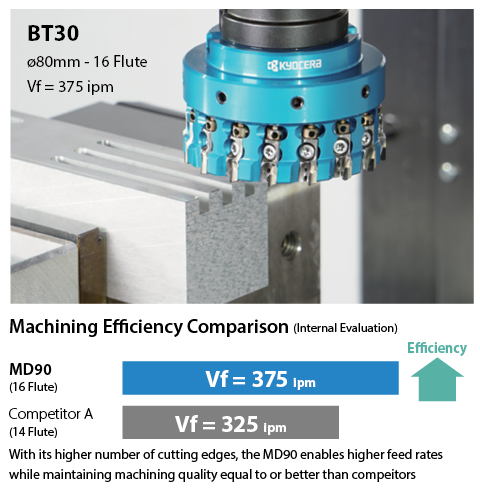

Machining efficiency comparison with BT30

n = 9,900 rpm (Vc = 8,200 sfm), Vf = 375 ipm (fz = 0.0024 ipt), D.O.C. x ae = 0.012" x 1.969", ADC12 Wet ø50mm, MD90-080RA-T16CSF, LNGX1807PDFR-G (KPD01A)

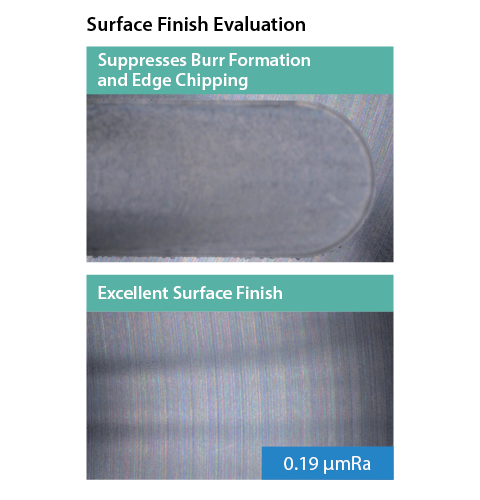

MD90 surface finish evaluation

Ultimate Stability

Stable machining even with a long overhang setup

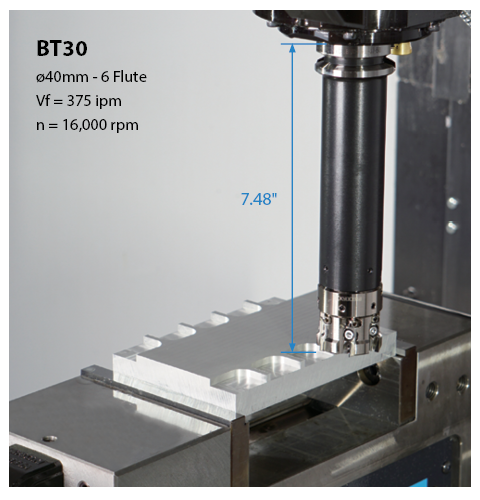

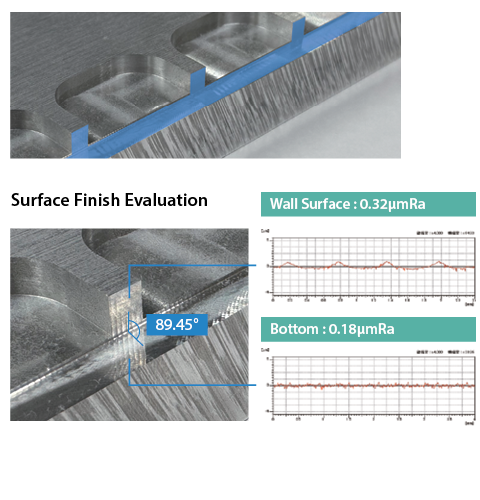

Long overhang finish comparison

n = 16,000 rpm (Vc = 6,560 sfm), Vf = 375 ipm (fz = 0.004 ipt), D.O.C. x ae = 0.197" x 0.197" ADC12 Wet ø1.575" (6 Flutes) MD90-040RS-T6CMSF, LNGX180704PDFR-RR (KPD01A)

Surface finish evaluation with long overhang
